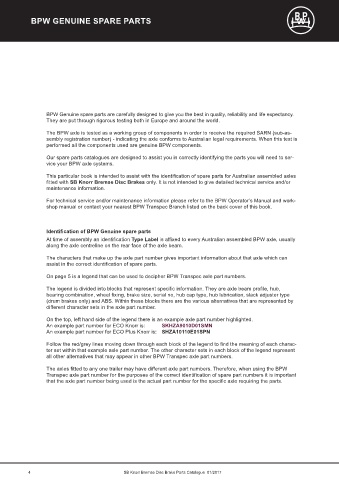

BPW GENUINE SPARE PARTS

BPW Genuine spare parts are carefully designed to give you the best in quality, reliability and life expectancy.
They are put through rigorous testing both in Europe and around the world.
The BPW axle is tested as a working group of components in order to receive the required SARN (sub-as-
sembly registration number) - indicating the axle conforms to Australian legal requirements. When this test is
performed all the components used are genuine BPW components.

Our spare parts catalogues are designed to assist you in correctly identifying the parts you will need to ser-
vice your BPW axle systems.

This particular book is intended to assist with the identification of spare parts for Australian assembled axles
fitted with SB Knorr Bremse Disc Brakes only. It is not intended to give detailed technical service and/or
maintenance information.

For technical service and/or maintenance information please refer to the BPW Operator’s Manual and work-
shop manual or contact your nearest BPW Transpec Branch listed on the back cover of this book.

Identification of BPW Genuine spare parts
At time of assembly an identification Type Label is affixed to every Australian assembled BPW axle, usually
along the axle centreline on the rear face of the axle beam.

The characters that make up the axle part number gives important information about that axle which can
assist in the correct identification of spare parts.

On page 5 is a legend that can be used to decipher BPW Transpec axle part numbers.
The legend is divided into blocks that represent specific information. They are axle beam profile, hub,
bearing combination, wheel fixing, brake size, serial no, hub cap type, hub lubrication, slack adjuster type
(drum brakes only) and ABS. Within these blocks there are the various alternatives that are represented by
different character sets in the axle part number.

On the top, left hand side of the legend there is an example axle part number highlighted.
An example part number for ECO Knorr is: SKHZA9010D01SMN
An example part number for ECO Plus Knorr is: SHZA10110E01SPN

Follow the red/grey lines moving down through each block of the legend to find the meaning of each charac-
ter set within that example axle part number. The other character sets in each block of the legend represent
all other alternatives that may appear in other BPW Transpec axle part numbers.

The axles fitted to any one trailer may have different axle part numbers. Therefore, when using the BPW
Transpec axle part number for the purposes of the correct identification of spare part numbers it is important
that the axle part number being used is the actual part number for the specific axle requiring the parts.

4 SB Knorr Bremse Disc Brake Parts Catalogue 01/2017
