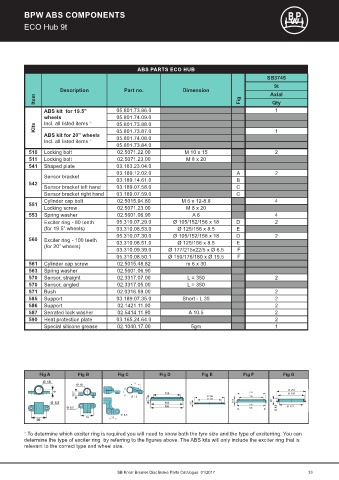

BPW ABS COMPONENTS

ECO Hub 9t

ABS PARTS ECO HUB
SB3745
9t
Description Part no. Dimension Axial
Item Fig Qty

ABS kit for 19.5" 05.801.73.86.0 1
wheels 05.801.74.09.0
Kits Incl. all listed items * 05.801.73.88.0 1
05.801.73.87.0
ABS kit for 20” wheels 05.801.74.08.0
Incl. all listed items *
05.801.73.84.0
510 Locking bolt 02.5071.22.00 M 10 x 15 2
511 Locking bolt 02.5071.23.00 M 8 x 20
541 Shaped plate 03.163.23.04.0
03.189.12.02.0 A 2
Sensor bracket
542 03.189.14.61.0 B
Sensor bracket left hand 03.189.07.58.0 C
Sensor bracket right hand 03.189.07.59.0 C
Cylinder cap bolt 02.5015.94.80 M 6 x 12-8.8 4
551
Locking screw 02.5071.23.00 M 8 x 20
553 Spring washer 02.5601.06.90 A 6 4
Exciter ring - 80 teeth 05.310.07.29.0 Ø 105/152/156 x 18 D 2
(for 19.5” wheels) 03.310.08.53.0 Ø 125/156 x 8.5 E
05.310.07.30.0 Ø 105/152/156 x 18 D 2
560 Exciter ring - 100 teeth 03.310.08.51.0 Ø 125/156 x 8.5 E
(for 20” wheels)
03.310.09.39.0 Ø 177/215x22/5 x Ø 6.5 F
05.310.08.50.1 Ø 150/176/180 x Ø 19.5 F
561 Cylinder cap screw 02.5015.48.82 m 6 x 30
563 Spring washer 02.5601.06.90
570 Sensor, straight 02.3317.07.00 L = 350 2
570 Sensor, angled 02.3317.05.00 L = 350
571 Bush 02.0316.59.00 2
585 Support 03.189.07.35.0 Short - L 35 2
586 Support 02.1421.11.00 2
587 Serrated lock washer 02.5414.11.90 A 10.5 2
590 Heat protection plate 03.165.24.64.0 2
Special silicone grease 02.1040.17.00 5gm 1

Fig A Fig B Fig C Fig D Fig E Fig F Fig G

* To determine which exciter ring is required you will need to know both the tyre size and the type of exciterring. You can
determine the type of exciter ring by referring to the figures above. The ABS kits will only include the exciter ring that is
relevant to the correct type and wheel size.

SB Knorr Bremse Disc Brake Parts Catalogue 01/2017 33
