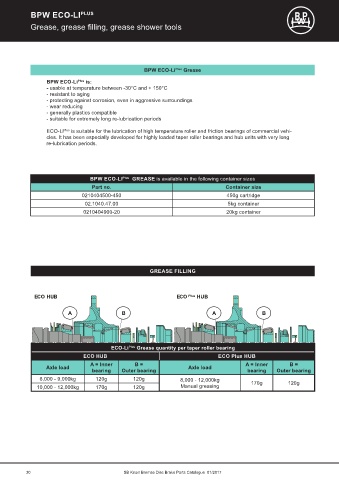

Page 30 - BPW ECO Disc service guide
P. 30
BPW ECO-LI PLUS
Grease, grease filling, grease shower tools
BPW ECO-Li Plus Grease
BPW ECO-Li Plus is:
- usable at temperature between -30°C and + 150°C
- resistant to aging
- protecting against corrosion, even in aggressive surroundings
- wear reducing
- generally plastics compatible
- suitable for extremely long re-lubrication periods
ECO-Li Plus is suitable for the lubrication of high temperature roller and friction bearings of commercial vehi-
cles. It has been especially developed for highly loaded taper roller bearings and hub units with very long
re-lubrication periods.
BPW ECO-LI Plus GREASE is available in the following container sizes
Part no. Container size
0210404500-450 450g cartridge
02.1040.47.00 5kg container
0210404900-20 20kg container
GREASE FILLING
ECO HUB ECO Plus HUB
A B A B
ECO-Li Plus Grease quantity per taper roller bearing
ECO HUB ECO Plus HUB
A = Inner B = A = Inner B =
Axle load Axle load
bearing Outer bearing bearing Outer bearing
6,000 - 9,000kg 120g 120g 8,000 - 12,000kg
10,000 - 12,000kg 170g 120g Manual greasing 170g 120g
30 SB Knorr Bremse Disc Brake Parts Catalogue 01/2017
