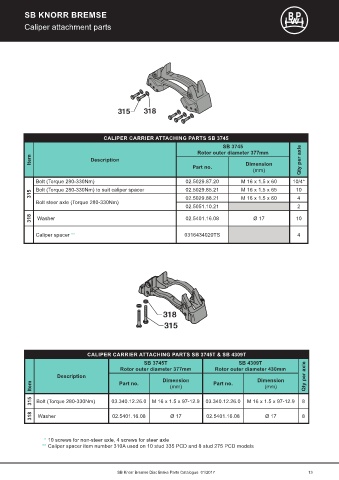

Page 13 - BPW ECO Disc service guide

SB KNORR BREMSE

Caliper attachment parts

CALIPER CARRIER ATTACHING PARTS SB 3745
SB 3745
Rotor outer diameter 377mm
Item Description Qty per axle
Part no. Dimension
(mm)
Bolt (Torque 280-330Nm) 02.5029.87.20 M 16 x 1.5 x 60 10/4*
Bolt (Torque 280-330Nm) to suit caliper spacer 02.5029.85.21 M 16 x 1.5 x 65 10
315 02.5029.88.21 M 16 x 1.5 x 60 4
Bolt steer axle (Torque 280-330Nm)
02.5051.10.21 2
318 Washer 02.5401.16.08 Ø 17 10

Caliper spacer ** 0316434020TS 4

CALIPER CARRIER ATTACHING PARTS SB 3745T & SB 4309T
SB 3745T SB 4309T
Rotor outer diameter 377mm Rotor outer diameter 430mm
Description Dimension Dimension Qty per axle
Item Part no. (mm) Part no. (mm)

315 Bolt (Torque 280-330Nm) 03.340.12.26.0 M 16 x 1.5 x 97-12.9 03.340.12.26.0 M 16 x 1.5 x 97-12.9 8

318 Washer 02.5401.16.08 Ø 17 02.5401.16.08 Ø 17 8

* 10 screws for non-steer axle, 4 screws for steer axle
** Caliper spacer item number 310A used on 10 stud 335 PCD and 8 stud 275 PCD models

SB Knorr Bremse Disc Brake Parts Catalogue 01/2017 13
