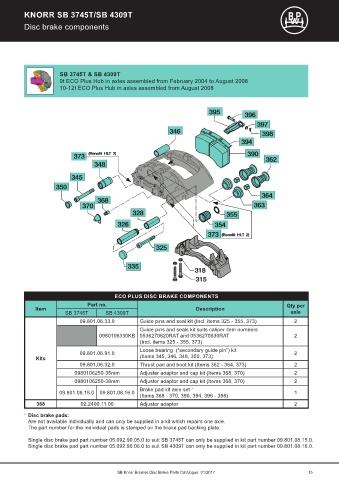

Page 15 - BPW ECO Disc service guide

KNORR SB 3745T/SB 4309T

Disc brake components

SB 3745T & SB 4309T
9t ECO Plus Hub in axles assembled from February 2004 to August 2008
10-12t ECO Plus Hub in axles assembled from August 2008

ECO PLUS DISC BRAKE COMPONENTS
Part no. Qty per
Item Description
SB 3745T SB 4309T axle
09.801.06.33.0 Guide pins and seal kit (Incl. items 325 - 355, 373) 2
Guide pins and seals kit suits caliper item numbers
0980106330KB 0536270620RAT and 0536270630RAT 2
(Incl. items 325 - 355, 373)
Loose bearing (“secondary guide pin”) kit
09.801.06.91.0 2
Kits (Items 345, 346, 348, 350, 373)
09.801.06.32.0 Thrust pad and boot kit (Items 362 - 364, 373) 2
0980106250-35mm Adjuster adaptor and cap kit (Items 368, 370) 2
0980106250-38mm Adjuster adaptor and cap kit (Items 368, 370) 2
Brake pad kit axle set *
09.801.08.15.0 09.801.08.16.0 1
(Items 368 - 370, 390, 394, 396 - 398)
368 02.2400.11.00 Adjuster adaptor 2
* Disc brake pads:
Are not available individually and can only be supplied in a kit which repairs one axle.
The part number for the individual pads is stamped on the brake pad backing plate.

Single disc brake pad part number 05.092.90.05.0 to suit SB 3745T can only be supplied in kit part number 09.801.08.15.0.
Single disc brake pad part number 05.092.90.06.0 to suit SB 4309T can only be supplied in kit part number 09.801.08.16.0.

SB Knorr Bremse Disc Brake Parts Catalogue 01/2017 15
