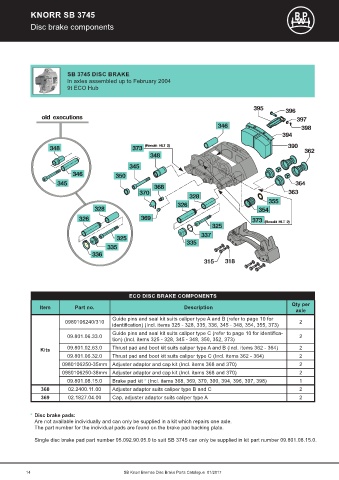

Page 14 - BPW ECO Disc service guide

KNORR SB 3745

Disc brake components

SB 3745 DISC BRAKE
In axles assembled up to February 2004
9t ECO Hub

ECO DISC BRAKE COMPONENTS
Qty per
Item Part no. Description
axle
Guide pins and seal kit suits caliper type A and B (refer to page 10 for
0980106240/310 2
identification) (Incl. items 325 - 328, 335, 336, 345 - 348, 354, 355, 373)
Guide pins and seal kit suits caliper type C (refer to page 10 for identifica-
09.801.06.33.0 2
tion) (Incl. items 325 - 328, 345 - 348, 350, 352, 373)
Kits 09.801.02.63.0 Thrust pad and boot kit suits caliper type A and B (Incl. items 362 - 364) 2
09.801.06.32.0 Thrust pad and boot kit suits caliper type C (Incl. items 362 - 364) 2
0980106250-35mm Adjuster adaptor and cap kit (Incl. items 368 and 370) 2
0980106250-38mm Adjuster adaptor and cap kit (Incl. items 368 and 370) 2
09.801.08.15.0 Brake pad kit * (Incl. items 368, 369, 370, 390, 394, 396, 397, 398) 1
368 02.2400.11.00 Adjuster adaptor suits caliper type B and C 2
369 02.1827.04.00 Cap, adjuster adaptor suits caliper type A 2

* Disc brake pads:
Are not available individually and can only be supplied in a kit which repairs one axle.
The part number for the individual pads are found on the brake pad backing plate.

Single disc brake pad part number 05.092.90.05.0 to suit SB 3745 can only be supplied in kit part number 09.801.08.15.0.

14 SB Knorr Bremse Disc Brake Parts Catalogue 01/2017
