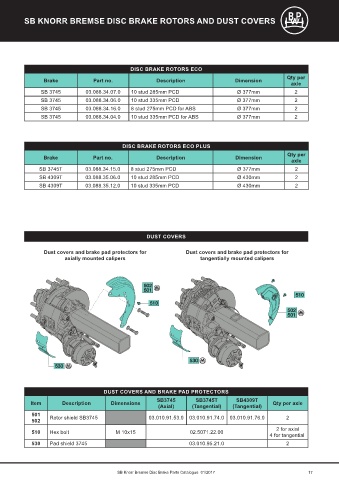

SB KNORR BREMSE DISC BRAKE ROTORS AND DUST COVERS

DISC BRAKE ROTORS ECO
Qty per
Brake Part no. Description Dimension
axle
SB 3745 03.088.34.07.0 10 stud 285mm PCD Ø 377mm 2
SB 3745 03.088.34.06.0 10 stud 335mm PCD Ø 377mm 2
SB 3745 03.088.34.16.0 8 stud 275mm PCD for ABS Ø 377mm 2
SB 3745 03.088.34.04.0 10 stud 335mm PCD for ABS Ø 377mm 2

DISC BRAKE ROTORS ECO PLUS
Qty per
Brake Part no. Description Dimension
axle
SB 3745T 03.088.34.15.0 8 stud 275mm PCD Ø 377mm 2
SB 4309T 03.088.35.06.0 10 stud 285mm PCD Ø 430mm 2
SB 4309T 03.088.35.12.0 10 stud 335mm PCD Ø 430mm 2

DUST COVERS

Dust covers and brake pad protectors for Dust covers and brake pad protectors for
axially mounted calipers tangentially mounted calipers

DUST COVERS AND BRAKE PAD PROTECTORS
SB3745 SB3745T SB4309T
Item Description Dimensions Qty per axle
(Axial) (Tangential) (Tangential)
501 Rotor shield SB3745 03.010.91.53.0 03.010.91.74.0 03.010.91.76.0 2
502
2 for axial
510 Hex bolt M 10x15 02.5071.22.00
4 for tangential
530 Pad shield 3745 03.010.95.21.0 2

SB Knorr Bremse Disc Brake Parts Catalogue 01/2017 17
