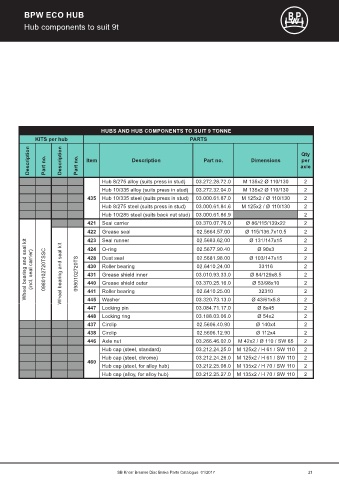

BPW ECO HUB

Hub components to suit 9t

HUBS AND HUB COMPONENTS TO SUIT 9 TONNE
KITS per hub PARTS
Description Part no. Description Part no. Item Description Part no. Dimensions axle
Qty
per

Hub 8/275 alloy (suits press in stud) 03.272.28.72.0 M 135x2 Ø 110/130 2
Hub 10/335 alloy (suits press in stud) 03.272.32.04.0 M 135x2 Ø 110/130 2
435 Hub 10/335 steel (suits press in stud) 03.000.61.87.0 M 125x2 / Ø 110/130 2
Hub 8/275 steel (suits press in stud) 03.000.61.84.6 M 125x2 / Ø 110/130 2
Hub 10/285 steel (suits back nut stud) 03.000.61.86.9 2
421 Seal carrier 03.370.07.76.0 Ø 86/115/139x22 2
422 Grease seal 02.5664.57.00 Ø 115/136.7x10.5 2
2
423
Seal runner
Ø 131/147x15
02.5683.62.00
Wheel bearing and seal kit (incl. seal carrier) 0980102720TSSC Wheel bearing and seal kit 0980102720TS 428 Dust seal 03.010.93.33.0 Ø 103/147x15 2
02.5677.90.40
O-ring
2
Ø 90x3
424
02.5681.98.00
430
02.6410.24.00
Roller bearing
33116
2
2
431
Grease shield inner
Ø 84/129x8.5
03.370.25.16.0
Ø 53/98x10
2
440
Grease shield outer
02.6410.25.00
32310
441
2
445
Washer
447 Roller bearing 03.320.73.13.0 Ø 43/61x5.8 2
Ø 8x45
2
Locking pin
03.084.71.17.0
448 Locking ring 03.188.03.06.0 Ø 54x2 2
437 Circlip 02.5606.40.90 Ø 140x4 2
438 Circlip 02.5606.12.90 Ø 112x4 2
446 Axle nut 03.266.46.02.0 M 42x2 / Ø 110 / SW 65 2
Hub cap (steel, standard) 03.212.24.25.0 M 125x2 / H 61 / SW 110 2
Hub cap (steel, chrome) 03.212.24.26.0 M 125x2 / H 61 / SW 110 2
460
Hub cap (steel, for alloy hub) 03.212.25.08.0 M 135x2 / H 70 / SW 110 2
Hub cap (alloy, for alloy hub) 03.212.25.27.0 M 135x2 / H 70 / SW 110 2
