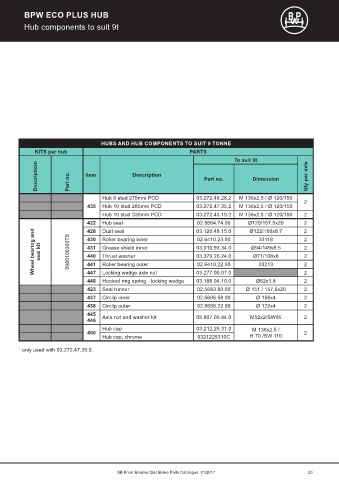

BPW ECO PLUS HUB

Hub components to suit 9t

HUBS AND HUB COMPONENTS TO SUIT 9 TONNE
KITS per hub PARTS
To suit 9t
Descriptioin Part no. Item Description Part no. Dimension Qty per axle

Hub 8 stud 275mm PCD 03.272.46.28.2 M 136x2,5 / Ø 120/150 2
435 Hub 10 stud 285mm PCD 03.272.47.35.2 M 136x2,5 / Ø 120/150
Hub 10 stud 335mm PCD 03.272.43.19.2 M 136x2,5 / Ø 120/150 2
02.5664.74.00
422 Hub seal 03.120.48.15.0 Ø120/157.5x20 2
Wheel bearing and seal kit 0980106360TS 430 Roller bearing inner 03.010.93.34.0 Ø94/149x8.5 2
2
Dust seal
Ø122/160x8.7
428
33118
02.6410.23.00
Grease shield inner
431
2
Thrust washer
440
03.370.26.24.0
2
Ø71/108x8
02.6410.22.00
2
33213
Roller bearing outer
441

447
Hooked ring spring - locking wedge
448 Locking wedge axle nut 03.277.00.07.0 Ø62x1.8 2
03.188.04.10.0
2
423 Seal runner * 02.5683.80.00 Ø 151 / 157,6x20 2
437 Circlip inner 02.5606.58.90 Ø 158x4 2
438 Circlip outer 02.5606.22.90 Ø 122x4 2
445 Axle nut and washer kit 05.807.00.44.0 M52x2/SW95 2
446
Hub cap 03.212.25.31.0 M 136x2.5 /
460 2
Hub cap, chrome 0321225310C H 70 /SW 110
* only used with 03.272.47.35.0.
