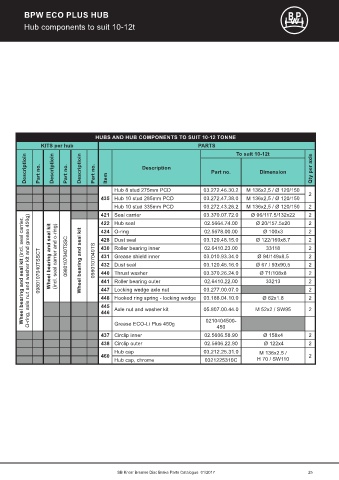

Page 25 - BPW ECO Disc service guide

BPW ECO PLUS HUB

Hub components to suit 10-12t

HUBS AND HUB COMPONENTS TO SUIT 10-12 TONNE
KITS per hub PARTS
To suit 10-12t
Descriptioin Part no. Descriptioin Part no. Descriptioin Part no. Item Description Part no. Dimension Qty per axle

Hub 8 stud 275mm PCD 03.272.46.30.2 M 136x2,5 / Ø 120/150
435 Hub 10 stud 285mm PCD 03.272.47.38.0 M 136x2,5 / Ø 120/150 2
Hub 10 stud 335mm PCD 03.272.43.26.2 M 136x2,5 / Ø 120/150 2
421 Seal carrier 03.370.07.72.0 Ø 96/117.5/132x22 2
O-ring, axle nut and washer kit and grease 450g)
Wheel bearing and seal kit (incl. seal carrier,
02.5664.74.00
422 Hub seal 03.120.48.15.0 Ø 20/157.5x20 2
424 O-ring
Ø 100x3
02.5678.00.00
2
Ø 122/160x8.7
2
428 Dust seal
02.6410.23.00
33118
0980107040TSSCT Wheel bearing and seal kit (incl. seal carrier and o-ring) 0980107040TSSC Wheel bearing and seal kit 0980107040TS 430 Roller bearing inner 03.010.93.34.0 Ø 67 / 93x90,5 2
431 Grease shield inner
2
Ø 94/149x8.5
03.120.45.16.0
2
432 Dust seal
03.370.26.24.0
Ø 71/108x8
2
440 Thrust washer
33213
02.6410.22.00
2
441 Roller bearing outer

447 Locking wedge axle nut
448 Hooked ring spring - locking wedge 03.277.00.07.0 Ø 62x1.8 2
2
03.188.04.10.0
445 Axle nut and washer kit 05.807.00.44.0 M 52x2 / SW95 2
446
0210404500-
Grease ECO-Li Plus 450g
450
437 Circlip inner 02.5606.58.90 Ø 158x4 2
438 Circlip outer 02.5606.22.90 Ø 122x4 2
Hub cap 03.212.25.31.0 M 136x2.5 /
460 2
Hub cap, chrome 0321225310C H 70 / SW110
