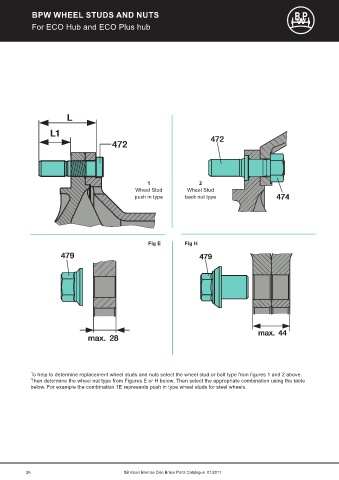

BPW WHEEL STUDS AND NUTS

For ECO Hub and ECO Plus hub

1 2
Wheel Stud Wheel Stud
push in type back nut type

Fig E Fig H

To help to determine replacement wheel studs and nuts select the wheel stud or bolt type from figures 1 and 2 above.
Then determine the wheel nut type from Figures E or H below. Then select the appropriate combination using the table
below. For example the combination 1E represents push in type wheel studs for steel wheels.
