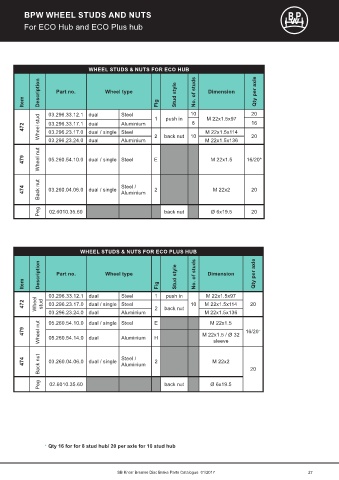

BPW WHEEL STUDS AND NUTS
For ECO Hub and ECO Plus hub
WHEEL STUDS & NUTS FOR ECO HUB
Description Part no. Wheel type Stud style No. of studs Dimension Qty per axle
Item Fig
03.296.33.12.1 dual Steel 1 push in 10 M 22x1.5x97 20
8
472 Wheel stud 03.296.33.17.1 dual Aluminium 2 back nut 10 M 22x1.5x136 16
dual / single Steel
M 22x1.5x114
03.296.23.17.0
20
Aluminium
03.296.23.24.0
dual
Wheel nut 05.260.54.10.0 dual / single Steel E M 22x1.5 16/20*
479
Back nut 03.260.04.06.0 dual / single Steel / 2 M 22x2 20
474 Aluminium
Peg 02.6010.35.60 back nut Ø 6x19.5 20
WHEEL STUDS & NUTS FOR ECO PLUS HUB
Description Part no. Wheel type Stud style No. of studs Dimension Qty per axle
Item Fig
03.296.33.12.1 dual Steel 1 push in M 22x1.5x97
472 Wheel stud 03.296.23.17.0 dual / single Steel 2 back nut 10 M 22x1.5x114 20
03.296.23.24.0 dual Aluminium M 22x1.5x136
Wheel nut 05.260.54.14.0 dual Aluminium H M 22x1.5 / Ø 32
479 05.260.54.10.0 dual / single Steel E M 22x1.5 16/20*
sleeve
Back nut Aluminium 20
474 03.260.04.06.0 dual / single Steel / 2 M 22x2
Peg 02.6010.35.60 back nut Ø 6x19.5
* Qty 16 for for 8 stud hub/ 20 per axle for 10 stud hub
